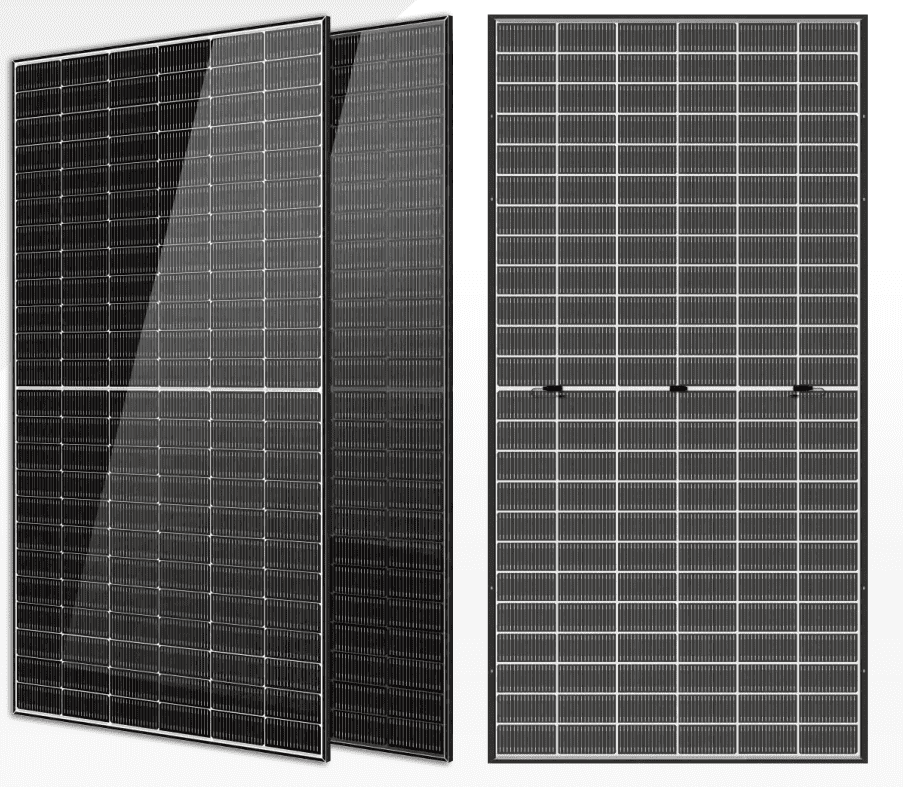

570-590W N-Type 72 Cells Mono-Bifacial Half-cut Module Solar Panel

182mm 580 Watt TOPCON Solar PV Panel
Solar cell : Mono-Bifacial 182mm
Number of cells : 144 (72×2)
Power range : 580W
Size : 2279×1134×30 mm
Certificate : TUV, CE
Lead time : 10 days
Payment : T/T, L/C

Product Description

SPECIFICATIONS
Weight	31.5kg
Dimension	2279mm1134mm30mm
Cell Dimension	182*91mm
Cell Amount	72*2 pcs
Maximum System Voltage	1500V
Junction Box	IP68
Type of the Front Glass	2.0mm Coated ultra clear glass
Type of the Back Glass	2.0mm Heat-strengthened glass
Frame	Aluminum Alloy
Cable	4mm²,+300,-300mm/±1100mm
	Length can be customized
Connector	MC4 compatible
Application Level	Class A

PACKING CONFIGURATION
Modules/Pallet	36 Pieces
Packaging Description	20 Pallets, Total=(36+36)x10=720 Pieces
Modules/40’Container	720 Pieces
Warranty	30 Years
