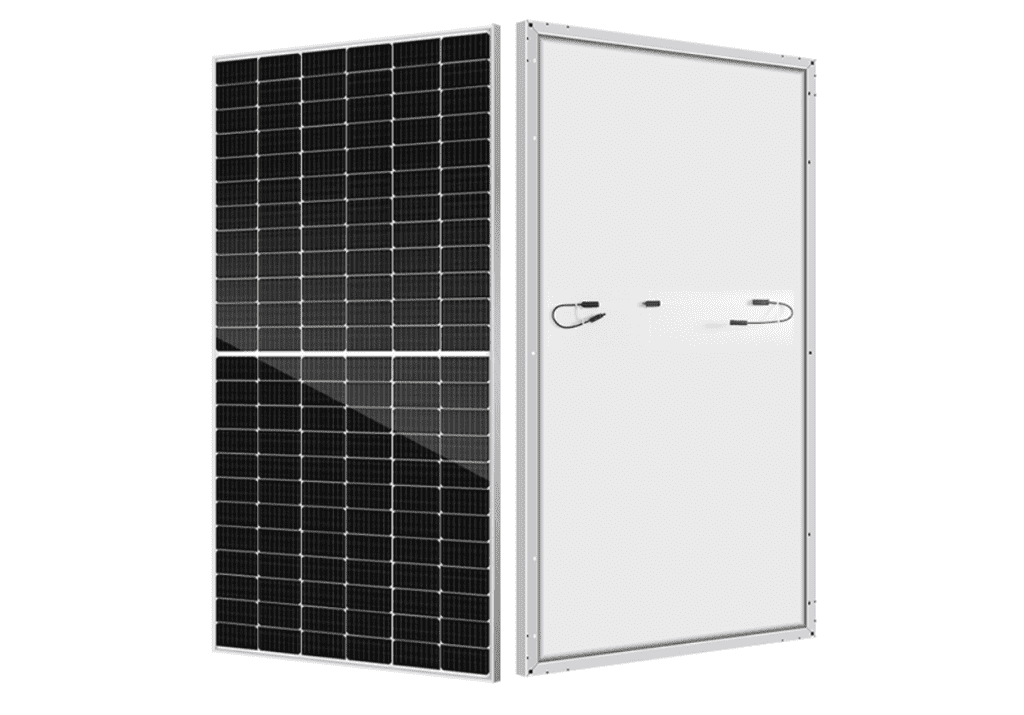

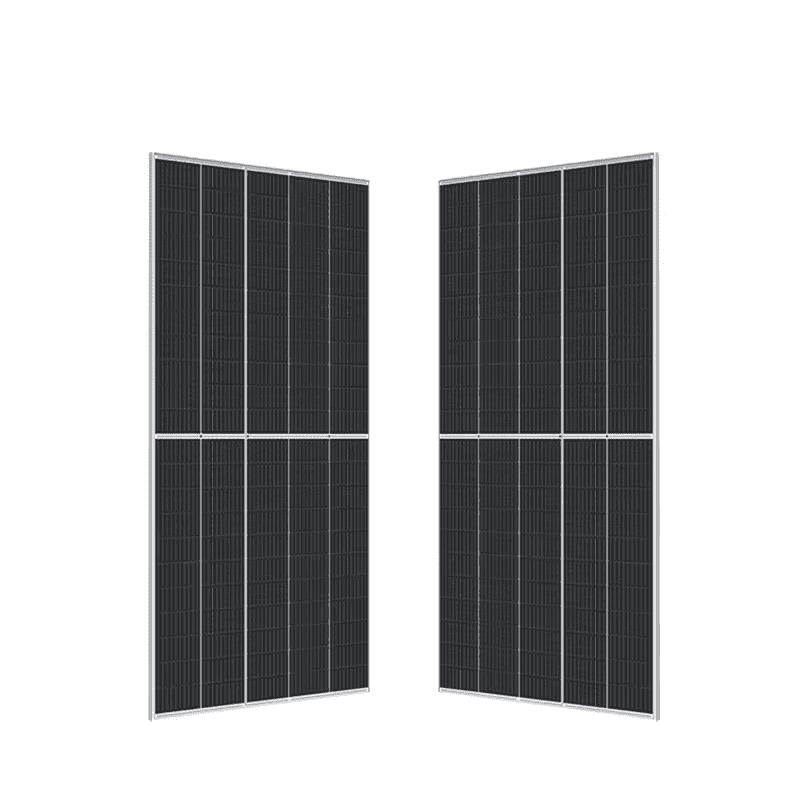

182mm 550 Watt Solar PV Panel

Solar cell : Mono-Facial 182mm

Number of cells : 144(2*72)

Power range : 550W

Size : 2279*1134*35mm

Certificate : TUV, CE

Lead time : 10 days

Payment : T/T, L/C

Specificationparameters
weight	26kg
size	2279mm1134mm35mm
Cellsize	182*91mm
Numberofbatterycells	72*2pcs
Maximumsystemvoltage	1500V
Junctionbox	IP68
Glassmaterial	3.2mm,hightransparencycoatedglass,lowironfullytemperedglass
frame	Anodizedaluminumalloy
Cable	4mm²/300mm
	Lengthcanbecustomized
Connector	MC4compatible
Applicationlevel	ClassA

Packagingparameters
Components/Supports	31pieces
PackagingDescription	20pallets,Total=(31+31)x10=620pieces
Component/40HQ	620pieces
Warranty	25years
